- Product information
General data
Type

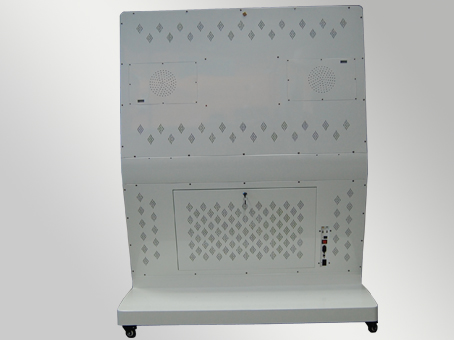

Panel PC
Power button
Yes
Series
FYHHW55
Storage
Yes
CPU
CPU type
Intel Core I3 2310M
CPU generation
Sandy Bridge
CPU family
Intel® Core™
CPU socket
Soldered
CPU frequency
2.1GHz
CPU frequency max
No
CPU cores
2
Cache
3 MB
Hyperthreading
Yes
Embedded
Yes
Memory / RAM
Socket type
SO-DIMM
Number of slots
1
Storage type
DDR3
ECC
No
Frequency
1333MHz/1600MHz
Voltage
1.3V/1.5V
Capacity
4GB
Storage
Bays 2.5 inch
2
Slot Msata
1
Interface for bays
SATA2.0+mSata
Amount connections for bays
2
Capacity
500G HDD
Graphics
Graphic type
On board integrated
Graphic chip (GPU)
Intel® HD Graphics
Graphic memory
Shared
DVI-I
No
HDMI
Yes
VGA
No
LVDS
No
Amount simultaneous displays
1
Resolution max
1920x1080
Display
LED panel(Grade A) brand
LG
Display size
55"
Display type
TFT
Aspect ratio
16:9
Display colors max
16.7M
Display resolution
1920x1080
Display brightness
360cd/©O
Backlight type (typical)
LCD
Touch screen
Infrared
Multitouch
Yes(10 points)
Touch interface
USB
Video interface
HDMI
Contrast ratio
4000:1
Viewing angle
89/89/89/89£¨Typ.£©
Response tiime
8 ms
Panel life
>60,000(hrs)
Touch resolution
4096x4096
Anti-glare
Yes
Tempered glass
Yes
Additional interfaces
USB 2.0
2
Mic-in
1
Line-out
1
Louder speaker(10W)
2
Expansion slots
mPCIe Full Size
1
Ethernet
1
Ethernet
Connector TX
RJ45
10/100/1000BaseTX ports
1
Network card
100M Onboard NIC/WIFI wireless network card
Power supply
Power supply V AC
Input£ºAC110-220V
Power supply connector
Power cord
Physical characteristic
Housing material
Aluminum alloy; Sheet metal
Housing color
White
Ingress protection
IP65 front
Dimensions (W x H x D)
1355x520x1700 mm
Weight
44 kg
Mounting
Customized
Environmental
Operating temperature range
-10+60¡æ
Storage temperature range
-20-+70¡æ
Humidity
95%
Vibration
1Grms,5~500Hz
Shock
10 G ,11ms
