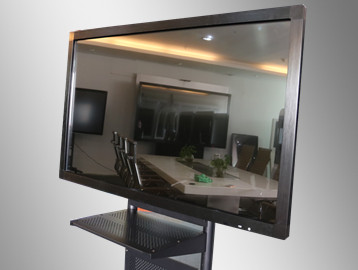

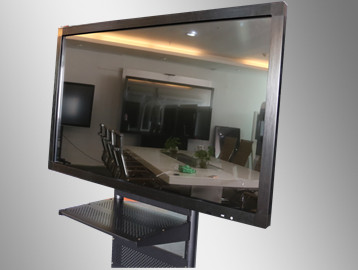

- Product information
General data
Type
Panel PC
Power button
Yes
Series
YHP5502
Storage
128G SSD
CPU
CPU type
Core I5 2520M
CPU generation
Sandy Bridge
CPU family
Intel Core
CPU socket CPU
Soldered
CPU frequency
2.5GHz
CPU frequency max
3.2GHz
CPU cores
2
Cache
3M
Hyperthreading
Yes
Embedded
Yes
RAM
Socket type
SO-DIMM
Number of slots
1
Storage type
DDR3
ECC
No
Frequency
1333MHz / 1600MHz
Voltage
1.35V / 1.5V
Capacity
4GB
Storage
Bays
2
Slot Msata
0
Interface for bays
SATA2.0
Amount connections for bays
2
Graphics
Graphic type
On board integrated
Graphic chip (GPU)
Intel HD Graphics
Graphic memory
Shared
Direct X Leve
DX11
OpenGL
No
DVI-I
No
HDMI
Yes
VGA
Yes
LVDS
Yes
Amount simultaneous displays
3
Resolution max
1920x1080
Display
LED panel(Grade A) brand
LG
Display size
55"
Display type
TFT
Aspect ratio
16:9
Display colors max
1.07 billion
Display resolution
3840 x 2160
Display brightness
390 cd/©O
Backlight type (typical)
LCD
Touchscreen
Infrared
Multitouch
Yes (10 points )
Touch Interface
USB
Video interface
HDMI, VGA
Contrast ratio
1000 : 1
Viewing angle
89 / 89 / 89 / 89 (Min.) (CR¡Ý10)
Additional interfaces
RS-232
2
USB 2.0
4
USB 3.0
2
Mic-in
1
Line-out
1
Digital input
4 (optional)
Digital output
4 (optional)
Expansion slots
mPCIe full size
1
Ethernet
1
Ethernet
Connector TX
RJ45
10 / 100 /1 000BaseTX ports
1
Power supply
Power supply
Input£ºAC110-220V
Power supply connector
Power cord
Physical characteristic
Housing material
Aluminium; Metal
Housing color
Black
Ingress protection
IP65 front
Dimensions (W x H x D)
1306 x 778 x 270 mm
Weight
70 kg
Mounting
Bracket
Environmental
Operating temperature range
-10 + 60¡æ
Storage temperature range
-20 + 70¡æ
Humidity
95%
Vibration
1Grms, 5~500Hz
Shock
10 G , 11ms
