- Product information
General data
Type

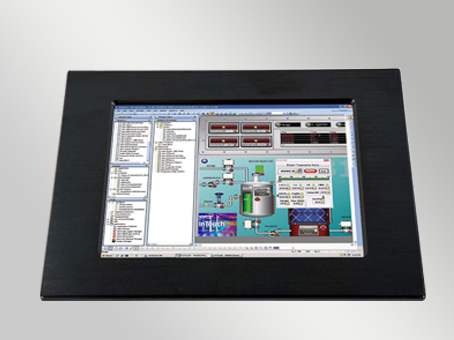

Panel PC
Power button
Yes
Series
YHP804
Storage
Yes
CPU
CPU type
Celeron 1037U
CPU generation
Bay Trail
CPU family
Intel® Celeron™
CPU socket
Soldered
CPU frequency
1.8GHz
CPU frequency max
1.8GHz
CPU cores
2
L2 cache
2 MB
Hyperthreading
No
Embedded
Yes
Memory / RAM
Socket type
SO-DIMM
Number of slots
1
Storage type
DDR3
ECC
No
Frequency
1333MHz /1600MHz
Voltage
1.35V / 1.5V
Capacity
4GB
Storage
Bays 2
2
Slot Msata
0
Interface for bays
SATA2.0
Amount connections for bays
2
Graphics
Graphic type
On board integrated
Graphic chip (GPU)
Intel® HD Graphics
Graphic memory
Shared
Direct X Leve
DX11
OpenGL
No
DVI-I
No
HDMI
Yes
VGA
Yes
LVDS
Yes
Amount simultaneous displays
3
Resolution max
1920 x 1080
Display
Display size
8.4¡±
Display type
TFT
Aspect ratio
4:3
Display colors max
262 k
Display resolution
800 x 600 (1024x768 optional)
Display brightness
250 cd/©O
Backlight type (typical)
LCD
Touchscreen
Resistive
Multitouch
No
Touch Interface
USB
Video Interface
HDMI, VGA
Contrast ratio
500:1
Viewing angle
70/70/50/70£¨Typ.)
Additional interfaces
RS-232
2
USB 2.0
4
USB 3.0
No
Mic-in
1
Line-out
1
Digital Input
4 (optional)
Digital Output
4 (optional)
Expansion slots
mPCIe Full Size
1
Ethernet
1
Ethernet
Connector TX
RJ45
10/100/1000BaseTX ports
1
Power supply
Power supply V DC
12V DC
Power supply connector
DC IN
Physical characteristic
Housing material
Aluminium; Metal
Housing color
Silver / Black
Ingress protection
IP65 front
Dimensions (W x H x D)
255 x 190 x 44 mm
Weight
2 kg
Mounting
VESA 75 / 100 / Panel mount
Environmental
Operating temperature range
-10 + 60¡æ
Storage temperature range
-20 + 70¡æ
Humidity
95%
Vibration
1Grms, 5~500Hz
Shock
10 G ,11ms
