- Product information
General data

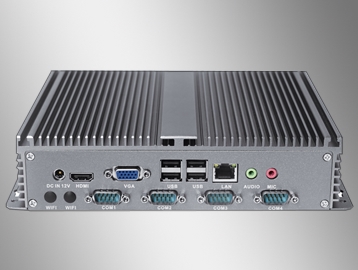

Type
Mini Box PC
Power button
Yes
Series
YHMP2
Storage
Yes
CPU
CPU type
Celeron 1037U
CPU generation
Bay Trail
CPU family
Intel® Celeron™
CPU socket
Soldered
CPU frequency
1.8GHz
CPU frequency max
1.8GHz
CPU cores
2
L2 cache
2 MB
Embedded
Yes
Memory / RAM
Socket type
SO-DIMM
Number of slots
1
Storage type
DDR3
Frequency
1333MHz / 1066MHz
Voltage
1.35V / 1.5V
Capacity
2GB
Storage
Bays
2
Interface for bays
SATA2.0
Amount connections for bays
2
Graphics
Graphic type
On board integrated
Graphic chip (GPU)
Intel® HD Graphics
Graphic memory
Shared
Direct X Leve
DX11
OpenGL
No
DVI-I
No
HDMI
Yes
VGA
Yes
LVDS
No
Amount simultaneous displays
2
Resolution max
1920 x 1080
I/O interface
RS-232
6
USB 2.0
8
USB 3.0
No
Power Switch
1
DC-IN
1
RJ-45
1
Mic in
1
AUDIO
1
Antenna jack
2
HDMI
1
VGA
1
Expansion slots
Mini-PCIE
2
SIM
1
Ethernet
Connector TX
RJ45
10 / 100 / 1000 BaseTX ports
1
Power supply
Power supply
12v DC
Power supply connector
DC IN
Physical characteristic
Housing material
Aluminium
Housing color
Titanium gray
Dimensions ( W x H x D )
234 x 200 x 52 mm
Weight
2kg
Mounting
VESA / Wall mount
Environmental
Operating temperature range
-10 + 60 ¡æ
Storage temperature range
-20 + 70 ¡æ
Humidity
95%
