General data
|
Type
|
Portable PC
|
Series
|
PCM01
|
Power button
|
Yes
|
Storage
|
Yes
|
|
|
CPU
|
CPU type
|
Core I5 2467
|
CPU generation
|
Sandy Bridge
|
CPU family
|
Intel® Core™
|
CPU socket
|
Soldered
|
CPU frequency
|
1.6GHz
|
CPU frequency max
|
2.3GHz
|
CPU cores
|
2
|
Cache
|
3 MB
|
Hyperthreading
|
Yes
|
Embedded
|
Yes
|
|
|
Memory / RAM
|
Socket type
|
SO-DIMM
|
Number of slots
|
1
|
Storage type
|
DDR3
|
ECC
|
No
|
Frequency
|
1333MHz/1600MHz
|
Voltage
|
1.5V
|
Capacity
|
4GB
|
|
|
Storage
|
Slot Msata
|
1
|
Slot SATA
|
1
|
Standard
|
500GB 2.5" HDD, SSD optional
|
|
|
Display
|
Display size
|
14.1¡±
|
Display type
|
TFT
|
Contrast ratio
|
16:9
|
Display resolution
|
1280x800(1440x900 optional)
|
Brightness
|
300-350cd/©O (support manual & automatic brightness adjustment)
|
|
|
Expansion slots
|
mini PCI-E
|
1
|
Ethernet
|
2
|
|
|
Ethernet
|
Connector TX
|
RJ45
|
10/100/1000BaseTX ports
|
2
|
|
|

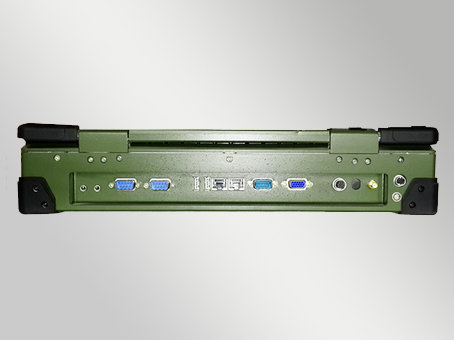

Additional interfaces
|
RS-232
|
1
|
USB 2.0
|
2
|
USB 3.0
|
4
|
Mic-in
|
1
|
Line-out
|
1
|
VGA
|
1
|
HDMI
|
1
|
PS/2
|
2
|
|
|
Power supply
|
Power supply
|
AC adapter (90W,100-240VAC,50/60Hz)
|
Battery
|
Lithium-ion battery 7800mAh/5200 mAh optional
|
|
|
Physical characteristic
|
Housing material
|
aluminum-magnesium alloy
|
Housing color
|
Army green
|
Ingress protection
|
IP65 front panel
|
Dimensions (W x H x D)
|
358x290x71mm
|
Weight
|
7kg
|
Mounting
|
Portable
|
|
|
Environmental
|
Operating temperature range
|
0+50¡æ
|
Storage temperature range
|
-20-+60¡æ
|
|
|
|
|
|
|
Others
|
|
Damping shaft life
|
up to 100,000 times
|
Keyboard
|
Waterproof keyboard of silica gel material/ 99 keyboard(optional)
|
Touch pad
|
support
|
|
|
|
