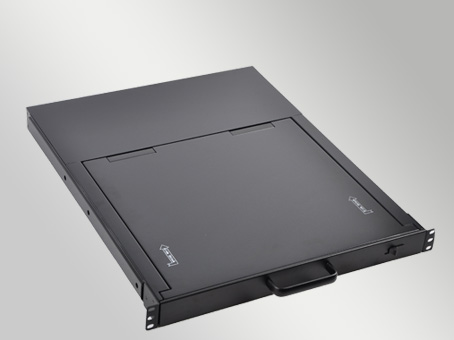

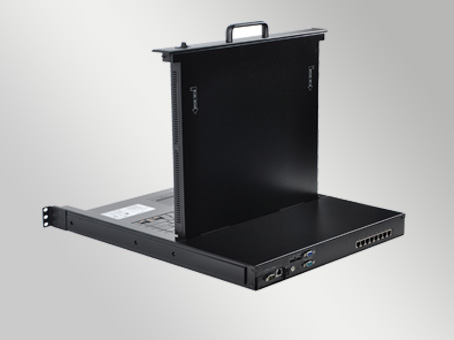

- Product information
GENERAL DATA
Series
YHK1701U
No.for direct connection of PC
1
Max.No.for connection of PC
1
Connection port
D-SUB15 port ( LCD, USB / PSII / USB & PSII keyboard, mouse )
OSD switching
Support
Switch mode
Hot key & OSD menu
Switching scan time
1-255s ( OSD adjustable )
Display control
multi-language OSD control
Keyboard / mouse
104 mechanical keyboard / touch pad
Display
Type
TFT LCD
Size
17 inch
Resolution
1280 x 1024
Color Display
16.7M
Brightness
300 cd/m2
Contrast Ratio
700 : 1
Backlight
CCFL LED
Pixel Distance ( mm )
0.294 ( H ) x 0.294 ( W )
LCD MTBF
> 50,000H
Power supply
Voltage input
AC100-240V, support hotplug, 35W
MTBF
> 10,0000H ( 25¡æ )
Environmental
Operating Temperature
-10 - 60 ¡æ
Storage Temperature
-30 - 70 ¡æ
Physical characteristic
Gross Weight
17 KG
Relative Humidity
5% - 95%@40¡æ , no condensing
Vibration
5-17Hz
Material
Steel
Color
Black
Dimension ( W x H x D )
446 x 415 x 44 mm
Suitable cabinet dimension
800 ~ 1040 mm
Working life
120,000 H
Certificate
FCC
Yes
CE
Yes
CCC
Yes
